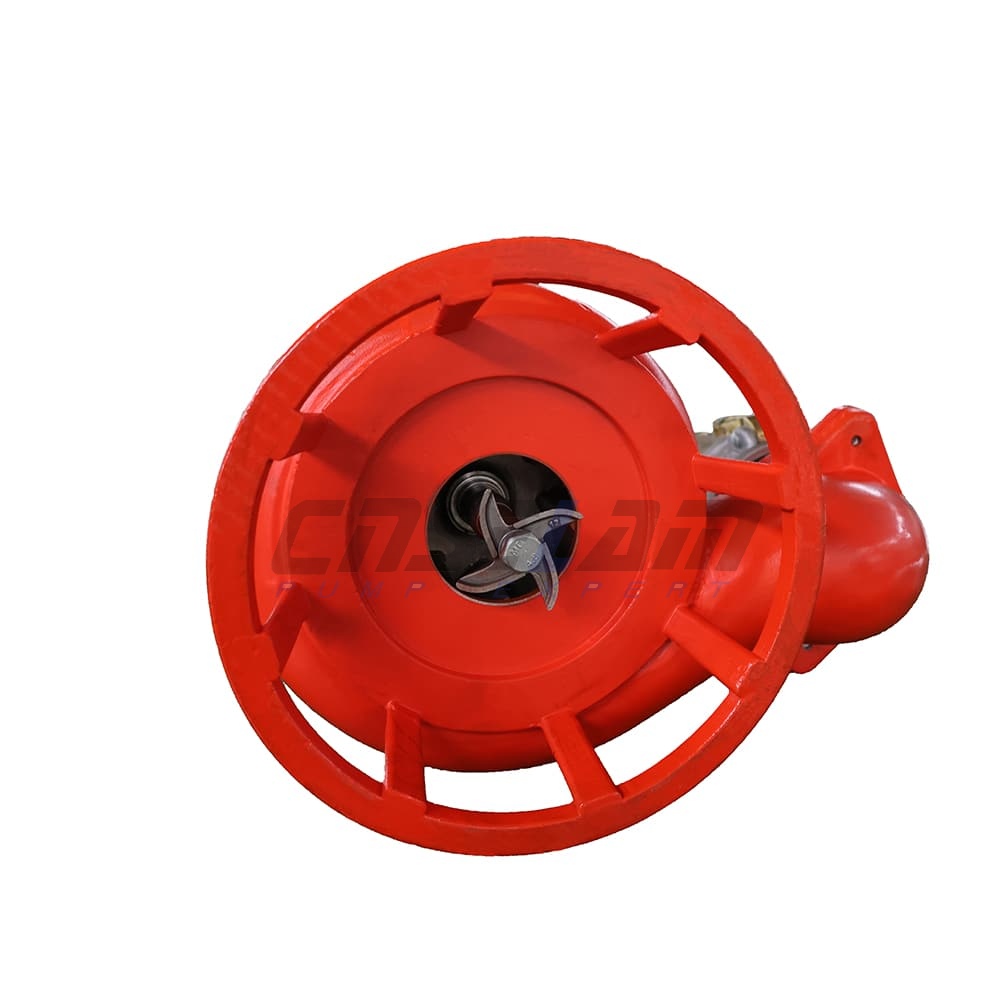

Name: Hydraulic Slurry Pump With Stirring Function
Availability: InStock

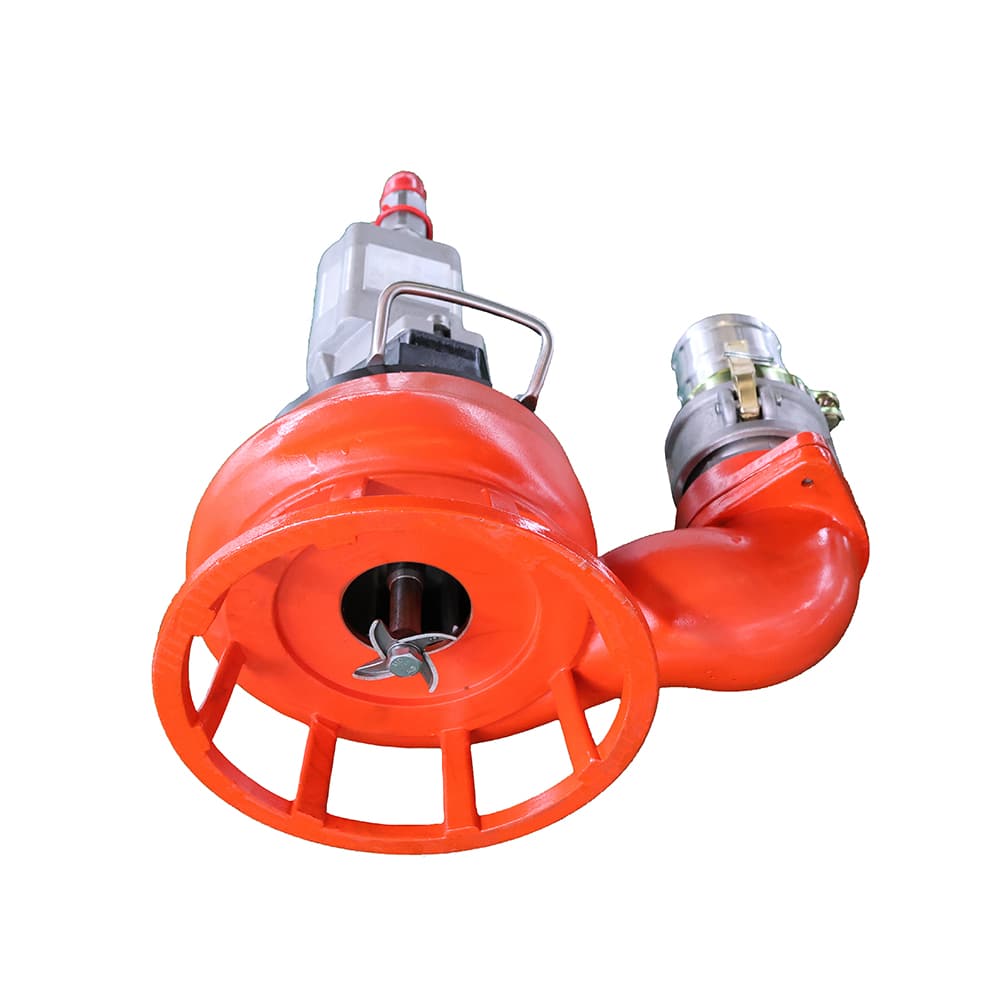

Hydraulic Slurry Pump With Stirring Function

CNSELAM HSP series stirring hydraulic slurry pump has the characteristics of stirring function, strong mobility and high efficiency.

Model :
HSP80
Outlet diameter(inch) :
3
Max. flow rate(m³/h) :
65-120
Max. head(m) :
10-48
Hydraulic flow rate(L/min) :
20-80
Pressure(bar) :
145
Solid passing(mm) :
58

Inquire Now

Product Details

Scene Pictures

HSP hydraulic slurry pump is made of 304 stainless steel and is designed for conveying media containing solid particles, such as ore slurry, mud, sand and lime slurry, etc. It has a wide range of uses.

Features：

1. The overall design of the pump is light, maneuverable and efficient.

2. The slurry pump impeller adopts a vortex design. The rotation of the impeller makes the liquid or slurry in the pump body move in a circular motion, forming a cone under the action of centrifugal force, reducing the contact between the liquid or slurry and the impeller and reducing friction.

Specifications

Model	Outlet diameter(inch)	Flow rate(m³/h)	Head(m)	Hydraulic flow rate(L/min)	Pressure(bar)	Solid passing(mm)
HSP65	2.5	65-120	10-60	30-80	280	58
HSP80	3	65-120	10-48	20-80	145	58
HSP100	4	120-250	10-50	30-80	155	65
HSP150	6	280-330	15-33.5	60-100	155-172	85
CHSP150	6	320	25	60-80	172	85
HSP200	8	450-500	0-12	80-120	140-190	100
CHSP200	8	600	25	120-140	230-270	85

（The corresponding hydraulic flow can be matched according to the actual working conditions.）
