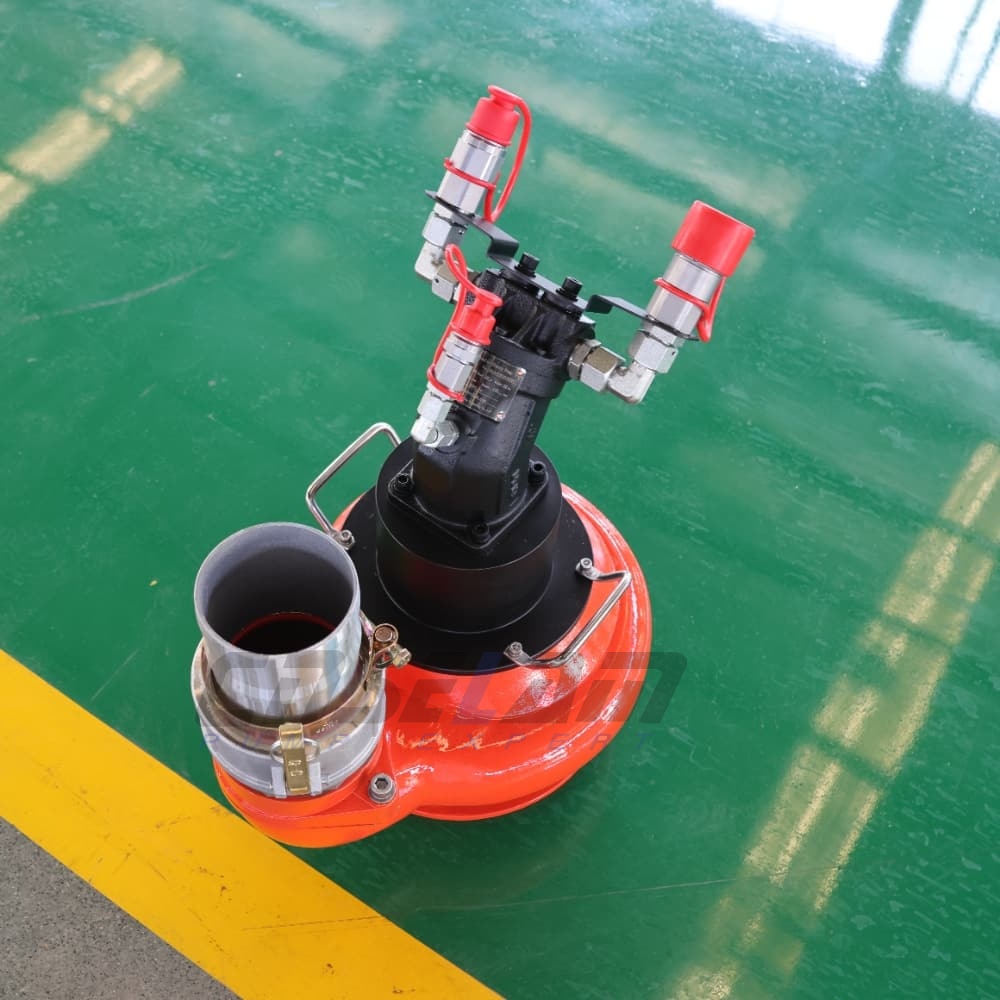

Name: Durable hydraulic trash pump
Availability: InStock

Durable hydraulic trash pump

CNSELAM HSP and CHSP series hydraulic slurry pumps are slurry conveying equipment that uses hydraulic motors/hydraulic cylinders as power sources to replace traditional electric motor-driven systems. The core of the system is to use high-pressure hydraulic oil to transmit power and drive the impeller (or piston) to rotate, specifically for conveying slurry containing particulate solids.

Model :
HSP100
Outlet diameter(inch) :
4
Max. flow rate(m³/h) :
120-250
Max. head(m) :
10-50
Hydraulic flow rate(L/min) :
30-80
Pressure(bar) :
220
Solid passing(mm) :
65

Inquire Now

Product Details

Scene Pictures

CNSELAM HSP and CHSP series Hydraulic trash pumps are a type of equipment that uses centrifugal force generated by the rotation of the impeller to transport solid-liquid mixtures. Its core is to achieve liquid transportation through centrifugal force.

Features：

1.The pump body has no motor and can be connected to an external hydraulic power station, eliminating the need for a fixed power grid. It is suitable for scenarios with no or insufficient power, such as mines, rivers, tunnels, and field rescue operations. It can be mounted on vehicles, ships, or hoisted, and can be used immediately after stopping.

2. It is directly driven by a hydraulic power unit, eliminating the risk of electrical leakage and providing high efficiency.

Specifications

Model	Outlet diameter(inch)	Flow rate(m³/h)	Head(m)	Hydraulic flow rate(L/min)	Pressure(bar)	Solid passing(mm)
HSP65	2.5	65-120	10-60	30-80	280	58
HSP80	3	65-120	10-48	20-80	200	58
HSP100	4	120-250	10-50	30-80	220	65
HSP150	6	280-330	15-33.5	60-100	155-172	85
CHSP150	6	320	25	60-80	172	85
HSP200	8	450-500	0-12	80-120	140-190	100
CHSP200	8	600	25	120-140	230-270	85
